Compact Slip Rings
A slip ring can be used in any electro-mechanical system that requires
unrestrained, continuous rotation while transferring power and / or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.

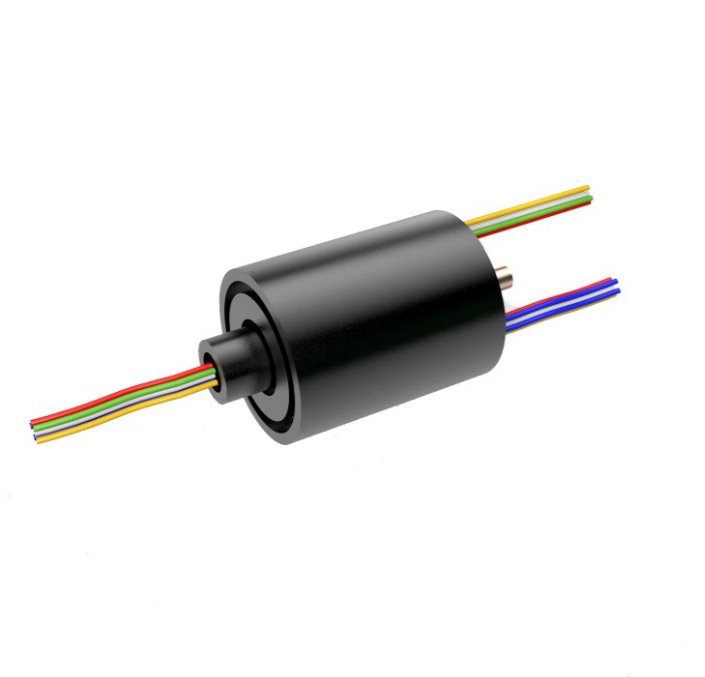

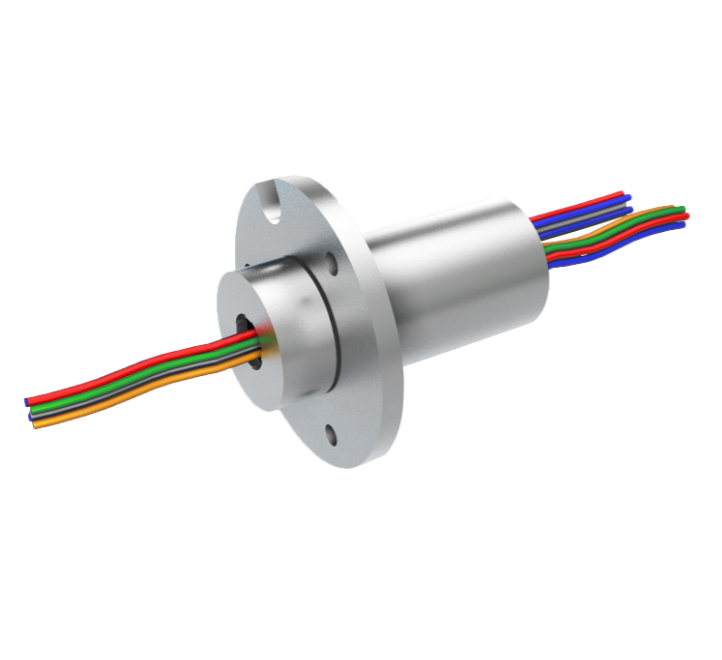

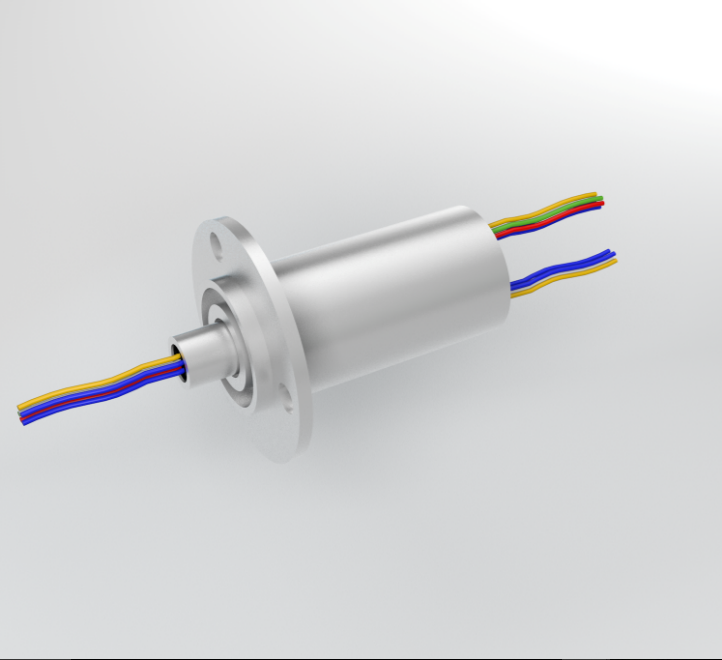

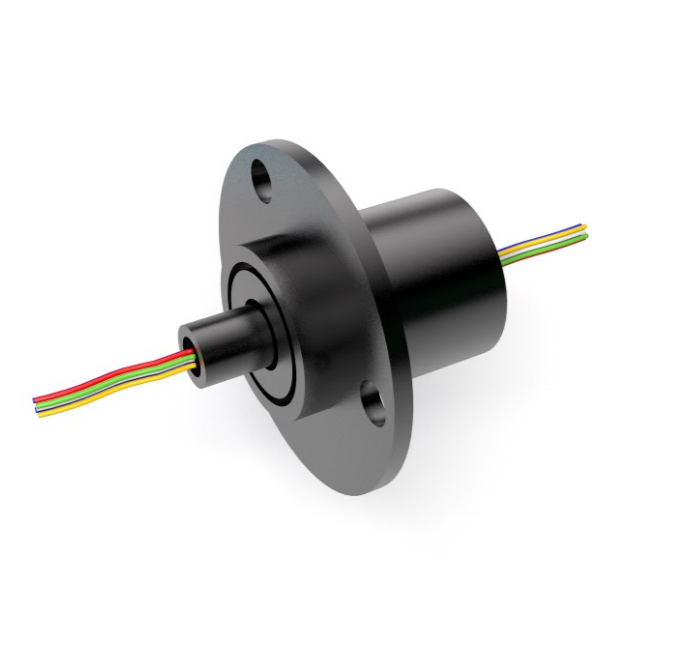

This slip ring which we call it “minitature”, is our newest design and smallest physical package. It can incorporate up to 56 circuits, each rated at 2 amps. This unit is ideal for use where mounting space is limited and critical, without sacrificing current handling capability.
compact slip ring series | |
number of circuits |
6,12,28,24,30,36,42, 48 and 56 circuit models |
operating speed | 200rpm-1000rpm |
leads length | as required |
Max. Ambient Temp | -40℃ to +80℃ |
rated current | 2A/5A/10A |
contact material | precious metal |
ingression protection |
IP54(higher available) |
Benefits
• Extremely compact
• Low torque
• Quick shipment
• High bandwidth transfer capability
Typical Applications
• CCTV pan / tilt camera mounts
• Medical equipment
• Robot end effectors
• Miniature cable reels
• Laboratory equipment
