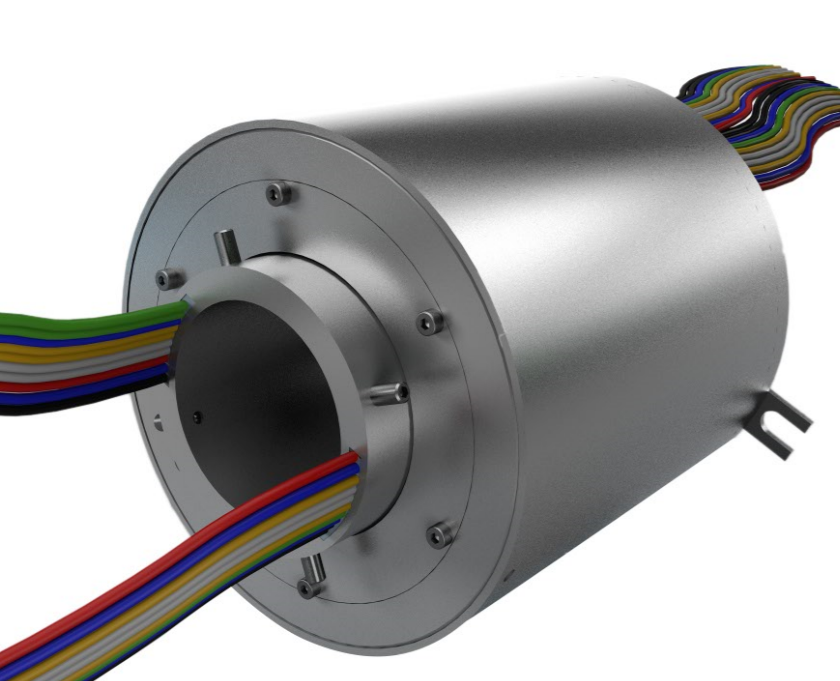

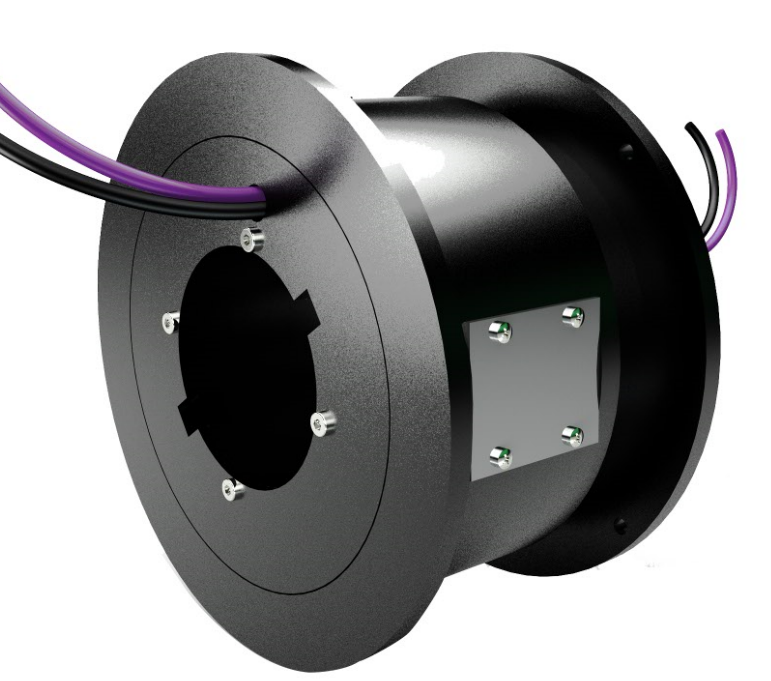

Through-bore Slip Rings
|
|
A slip ring capsule can be used in any electromechanical systemthat requires unrestrained, intermittent or continuous rotation whiletransferring power and / or data. A slip ring is also called a rotaryelectrical joint, collector, commutator or swivel. A slip ring can improvesystem performance by simplifying operations and eliminating damageprone wires.
| Through-Bore Slip Ring | |
| total number of circuits | multiple(up to 150) |
| operating speed | 200rpm-3000rpm |
| leads length | as requested |
| Voltage | 220AVC/380 VAC |
| Max. Ambient Temp | -40℃to +80℃ |
| rated power current | 15A/25A/40A |
| rated signal current | 5A |
| Noise |
≤10mΩ, tested @6VDC,50mA,5RPM |
| contact material | precious metal |
| ingression protection | IP54(higher available) |
| bore caliber | 10mm-500mm |
| signal type | ethernet/BUS/CAN/DP( and more) |
Features：
• 10 to 500 mm through-bore
• Speed up to 3000 rpm continuous
• multiple transmission of power and data signals
• Ethernet model available
Benefits:
• Transfer power, as well as analog and digital signals
• Compatible with data bus protocols
• Compact packaging
• easy mounting on shaft
Typical Applications:
• Precision rotary equipment
• Semiconductor handling systems
• Robotics
• Camera systems
• industrial machinery
