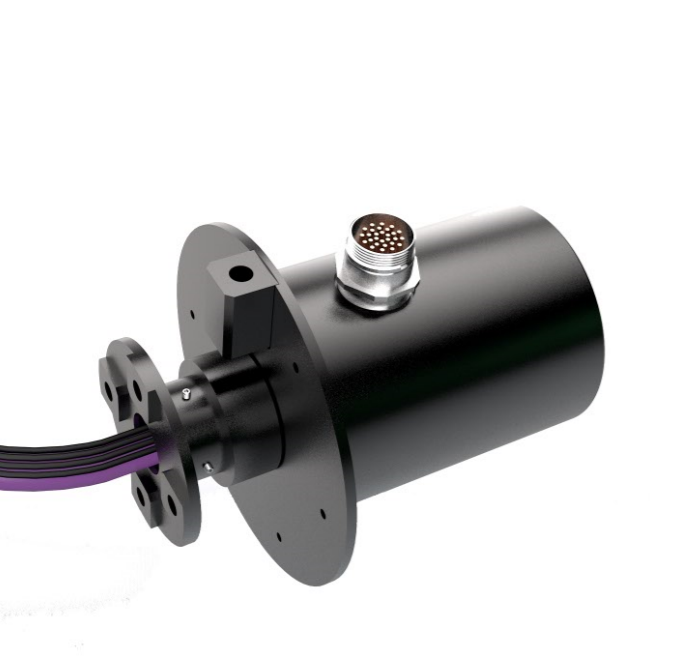

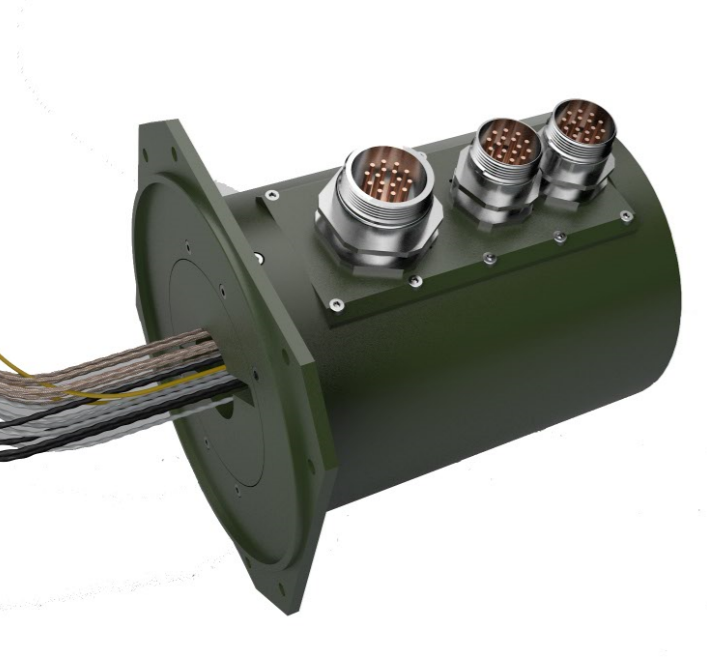

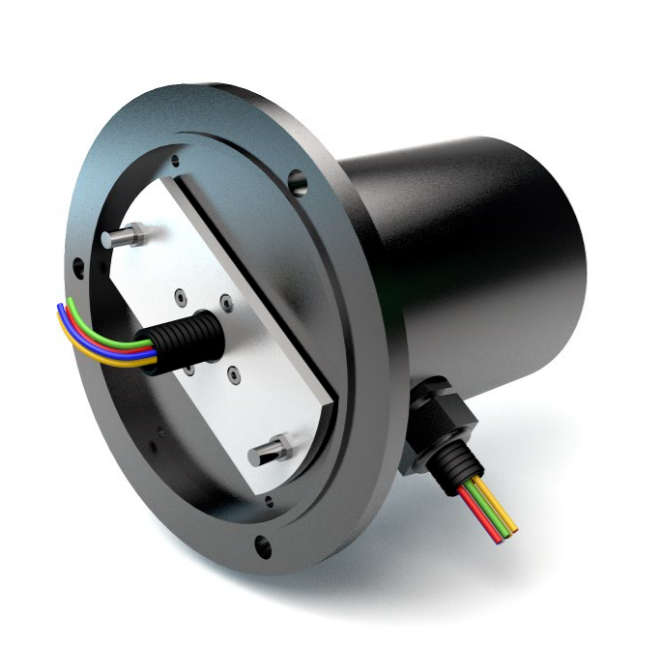

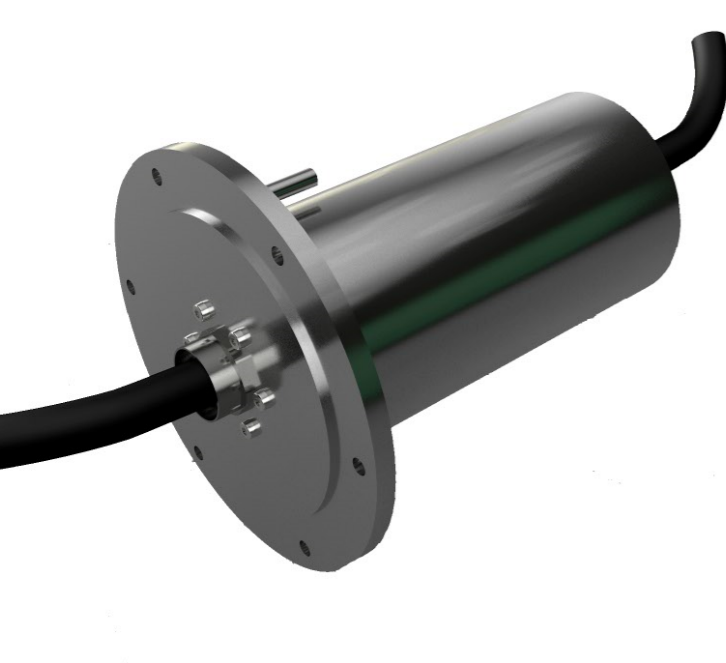

Flange Slip Rings
Stator and/or rotor with flange for mounting, through bore may be available as required.
We have developed products for critical applications in military, space, medical and industrial environments. Our industrial slip ring products are based on our years of material and design experience and provide unrivaled contact technologies.
| flange slip ring series | |
| number of rings | multiple rings (up to 150) |
| working speed | 200rpm-2000rpm |
| leads length | as requested |
| Voltage | 220VAC/380 VAC |
| Max. ambient Temp | -40℃ to +80℃ |
| Max.power current | 5A/15A/25A/40A |
| contact material | precious metal |
| ingression protection | IP54(higher available) |
| working condition | harsh environment available |
| mounting | flange |
| life | 100million revolution |
Advantages
• Configured for Ethernet transmission• RJ45 connector for direct plug-and-play
• High performance contact technology
• Available with multiple Ethernet, power and signal combinations
Typical Applications
• Custom machinery
• Construction mechineries
• Radar
We have a wide range of flange slip rings, from compact products to slip ring assembly for heavy load machineries.
We would like to offer quotation along with design solution, please send your specification to slipring@ex.forstar.com.cn
